Gears
Ball Race

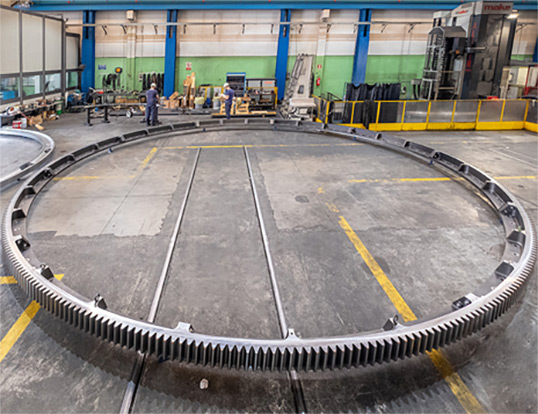

Upper and lower ball bearing race with gear teeth and additional parts.Material: Forged steel 30CrNiMo8.
Diameter: 33'
Completely machined.
For a customer in Germany

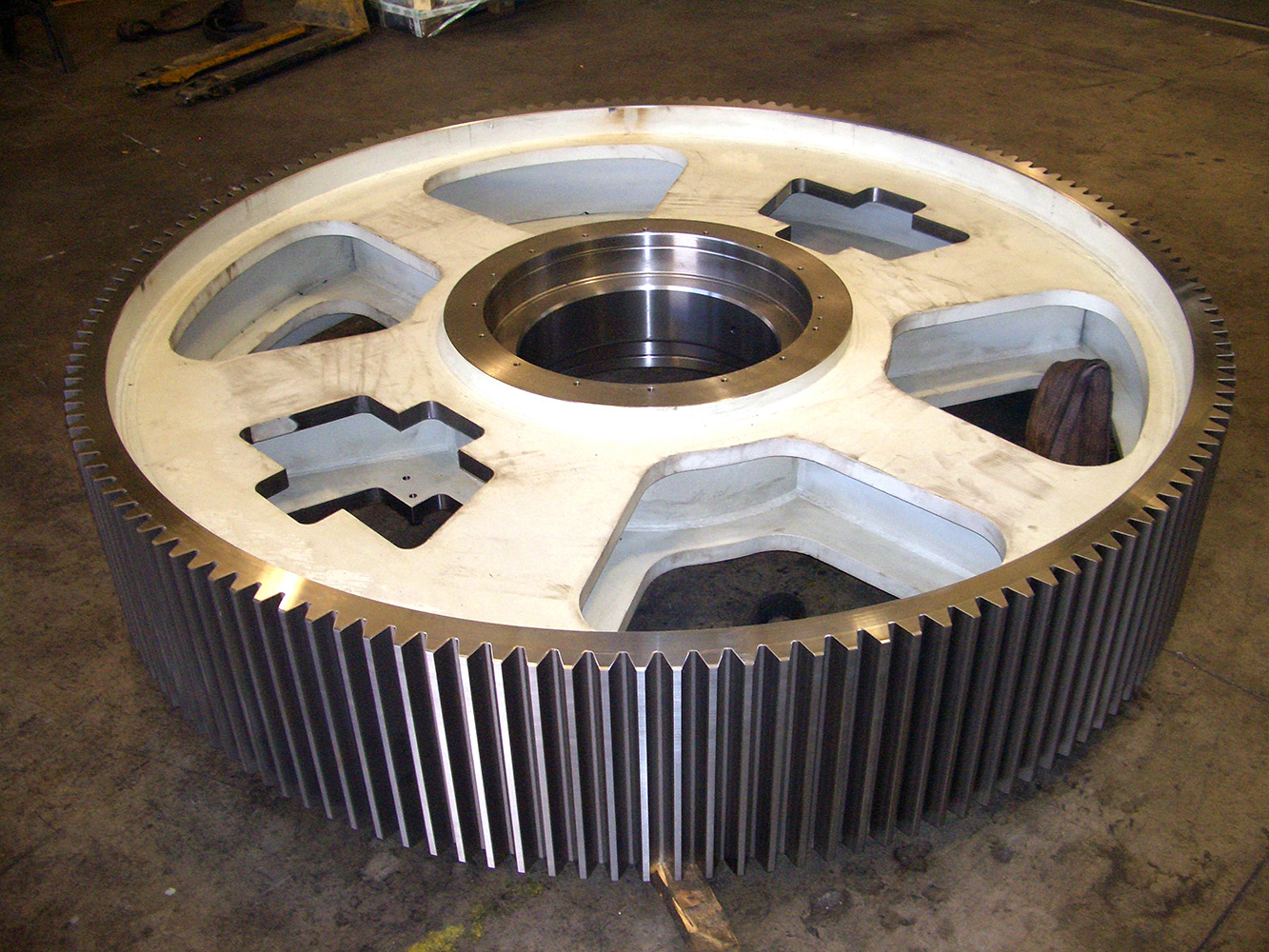

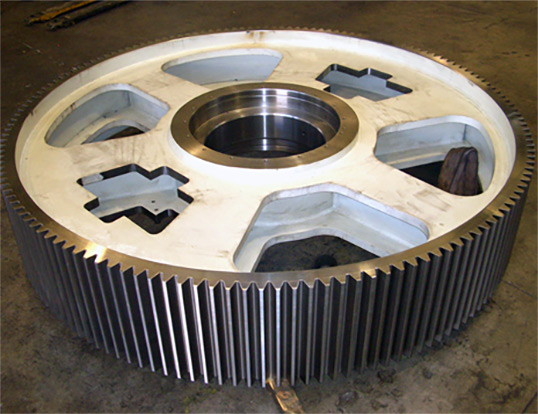

Gear 1

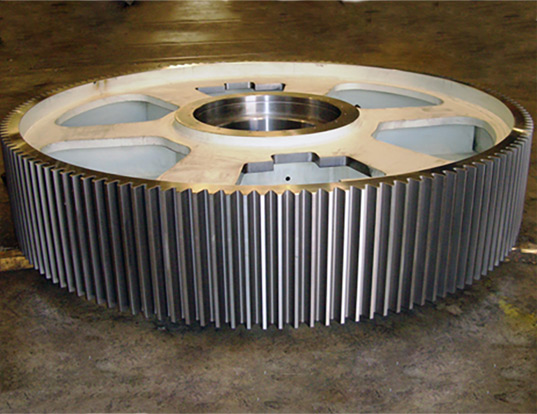

Turned, bored, milled and assembly performed with mechanical welding. Pressure angle toothing execution 17.5°.External ring material and internal hub: Forged steel.
Internal structure material: Laser cut steel sheet.
Dimensions: Height 4', Dia. 9'.
To be assembled in gearbox.
For a customer in Belgium.

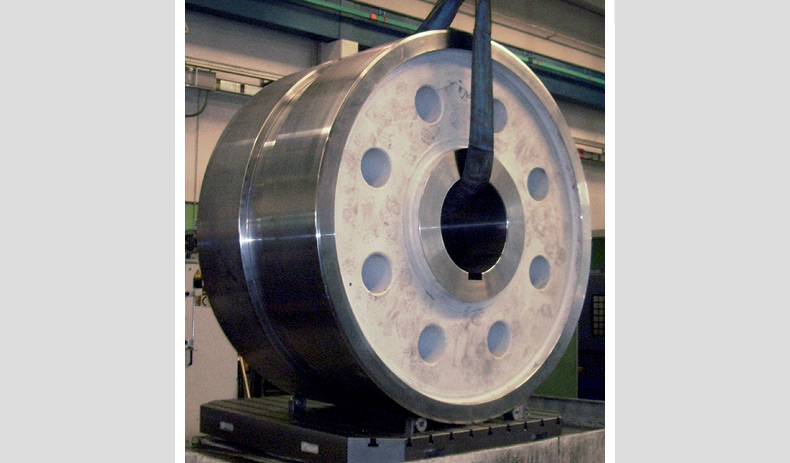

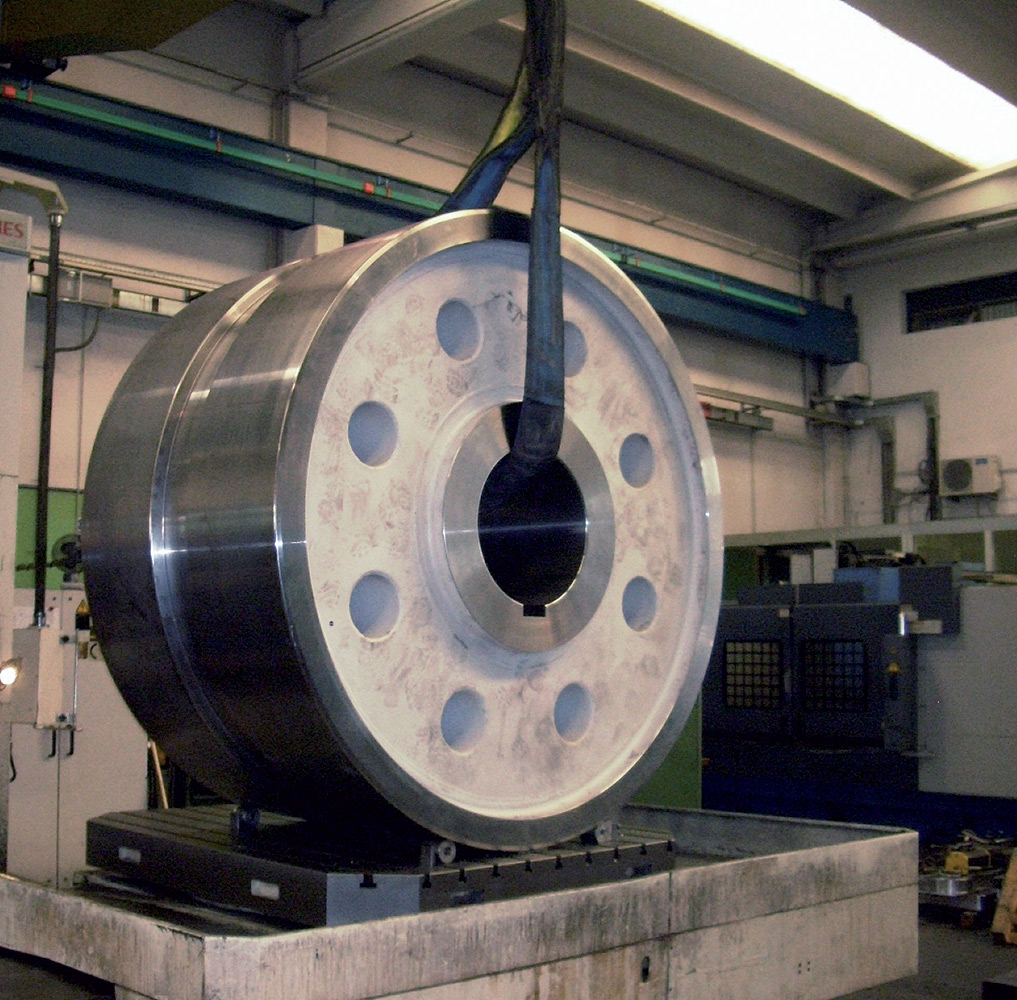

Gear 2
Turned, bored, milled and assembly performed with mechanical welding.External ring material and internal hub: Forged steel.
Internal structure material: Laser cut steel sheet.
Dimensions: Height 4', Dia. 9'.
For a customer in Belgium.

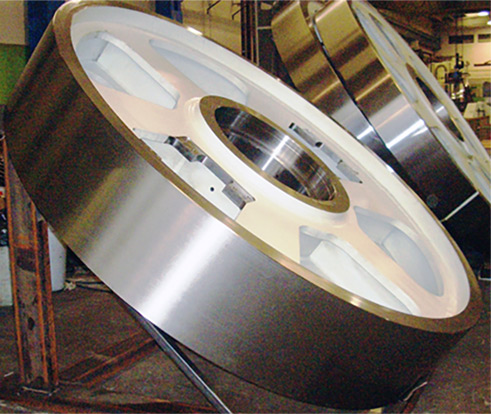

Gear 3
Turned, bored, milled and assembly performed with mechanical welding.External ring and internal hub material: Forged steel.
Internal structure material: Laser cut steel sheet.
Dimensions: Height 1 ½', Dia. 10 ½'.
For a customer in Belgium.

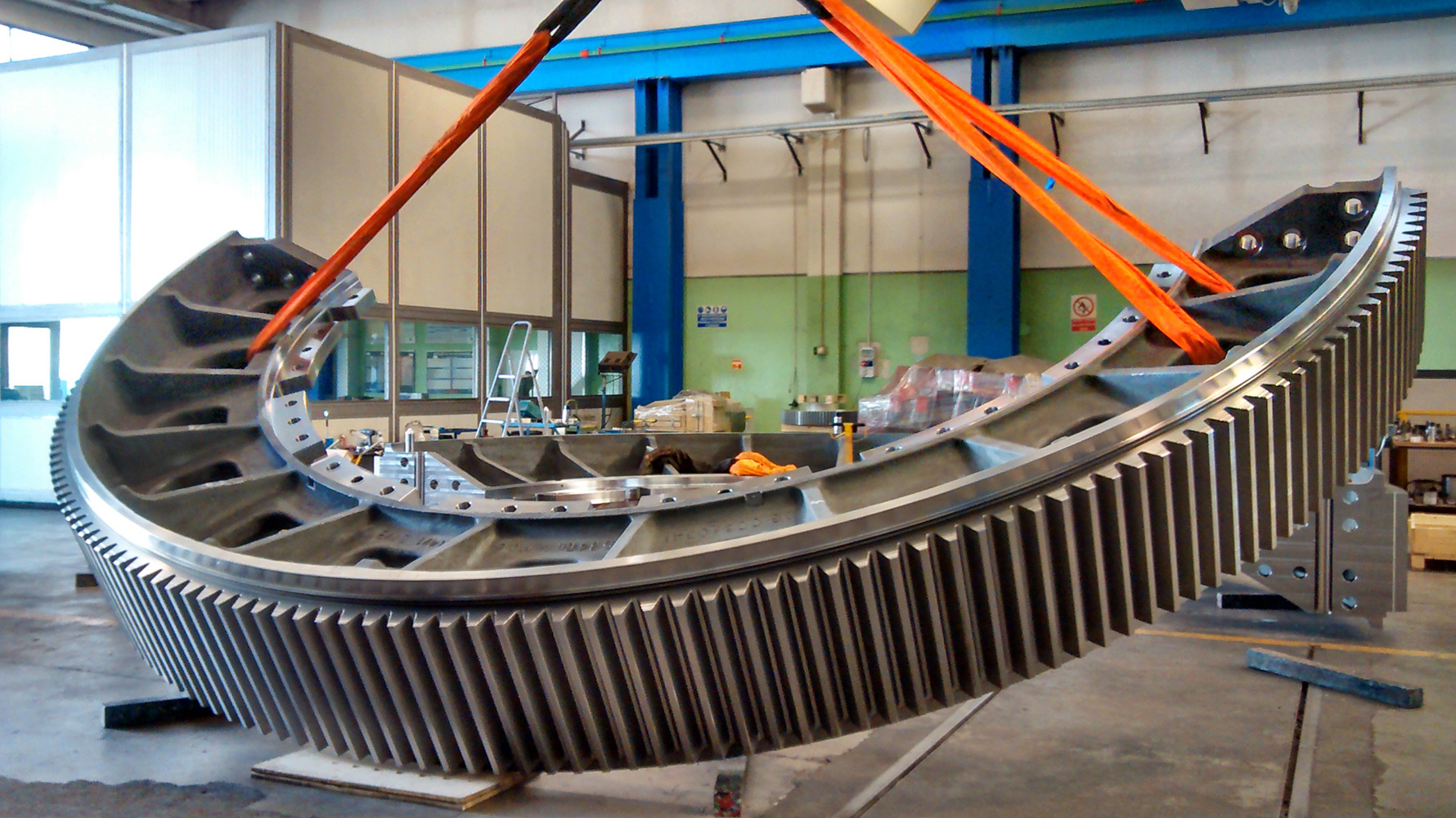

Gear 4

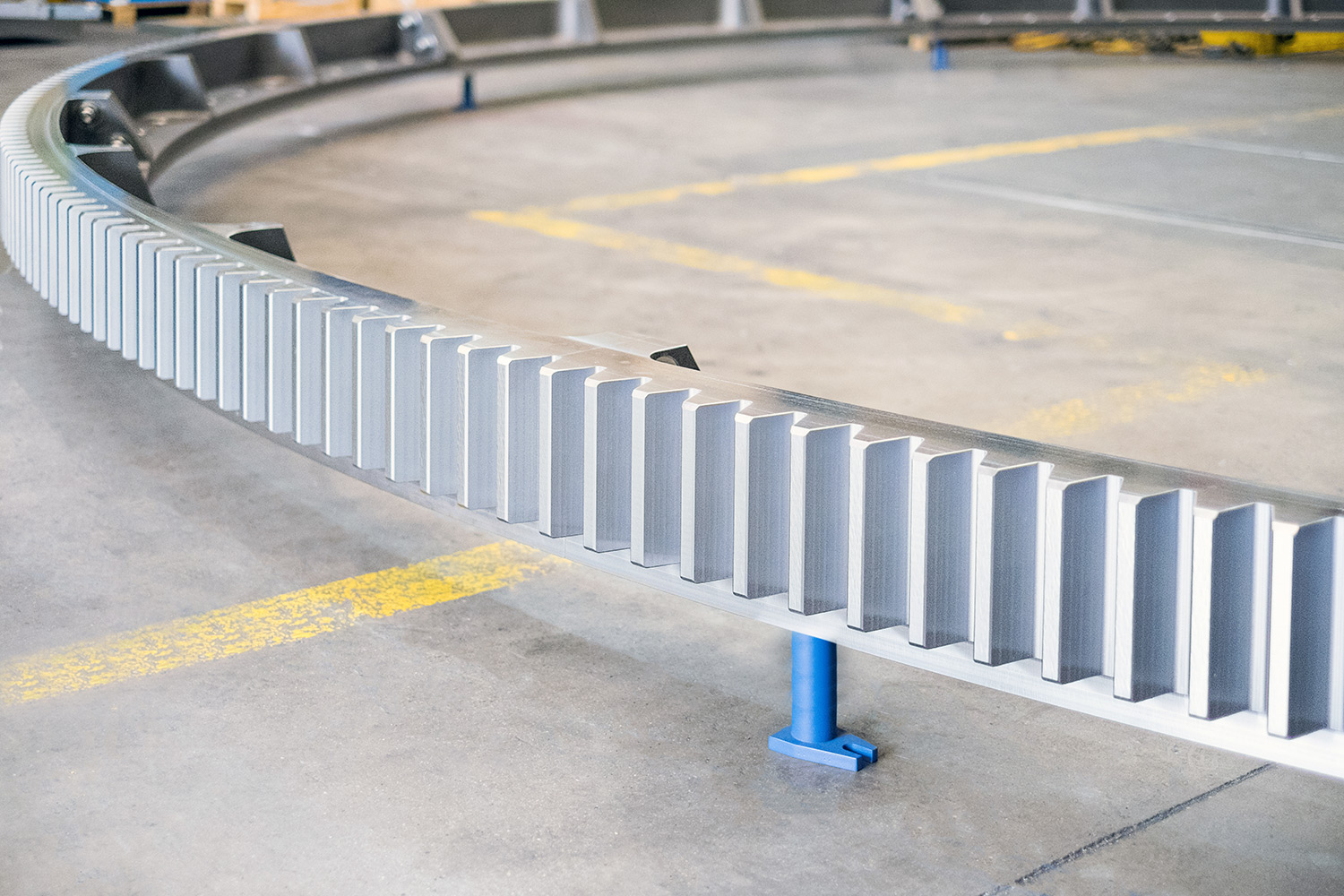

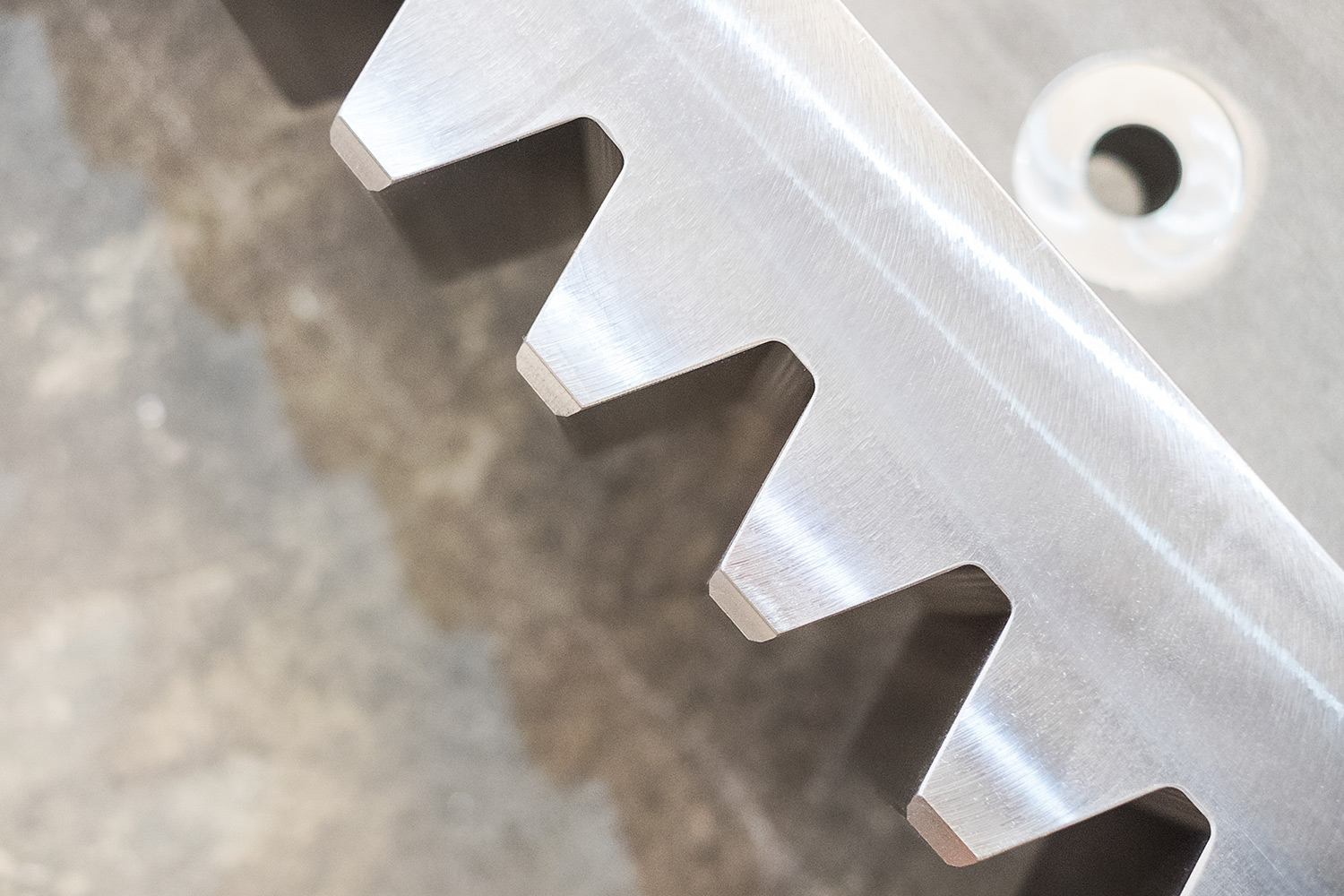

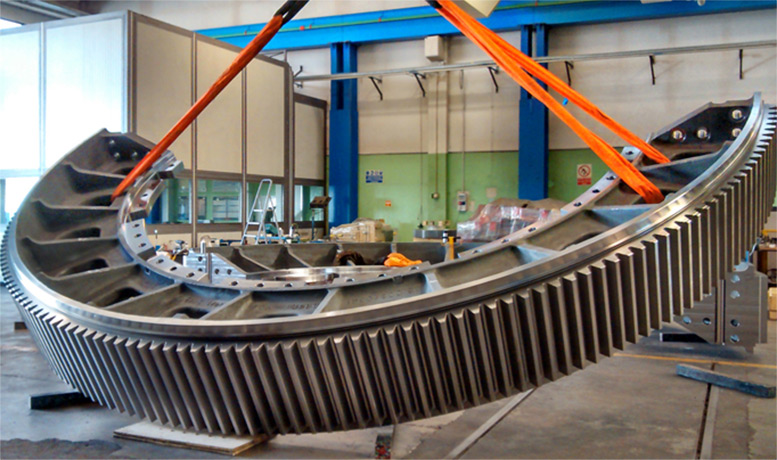

Gear - 2 half rings assembled with mechanical welding parts. Turned, bored, milled and gear teeth cut.Pressure angle teeth execution 25°:
Material: GS 34CRNIMO6.
Dimension: Dia. 24', weight 47 tons.
For a customer in Belgium.
Gear 5

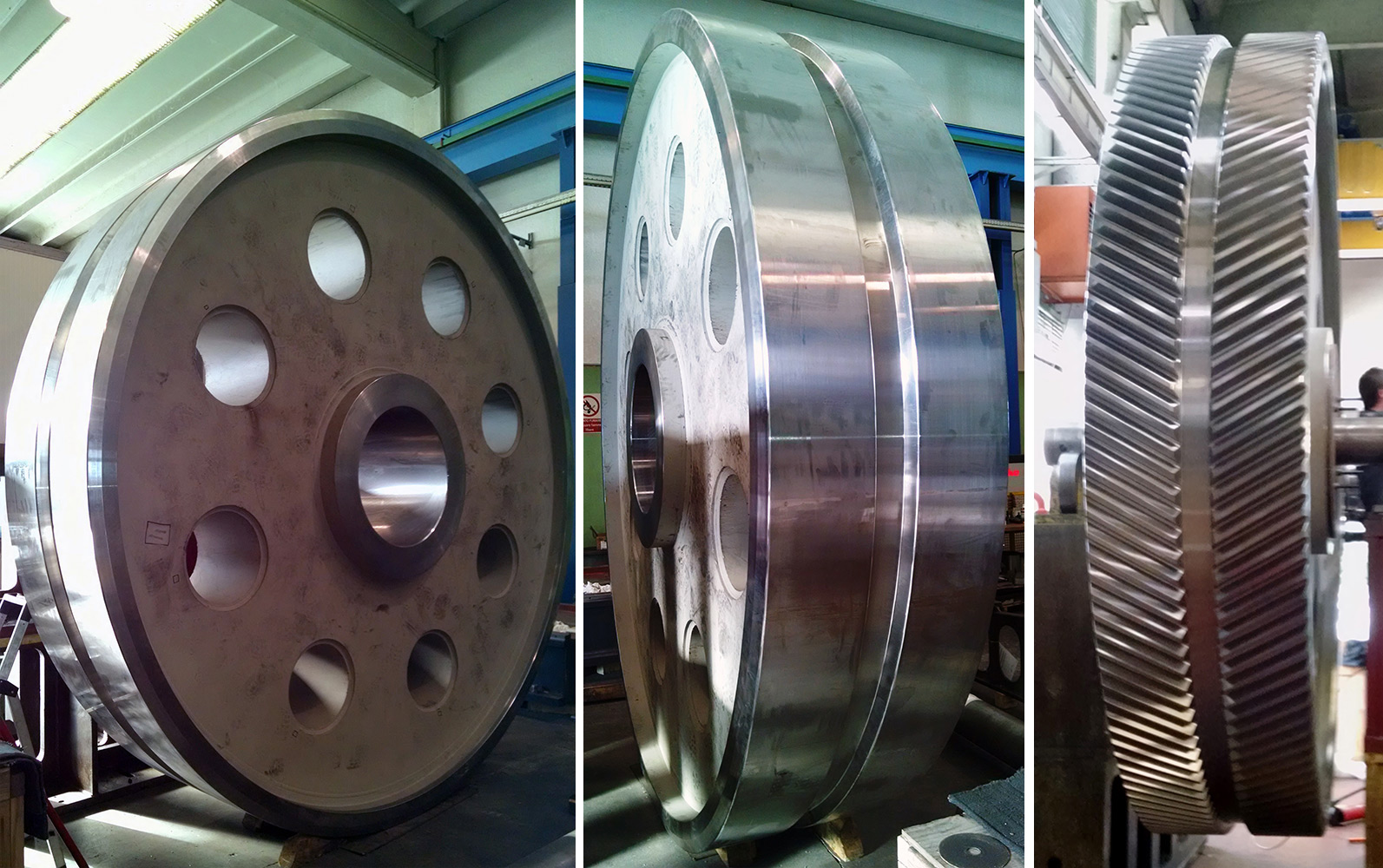

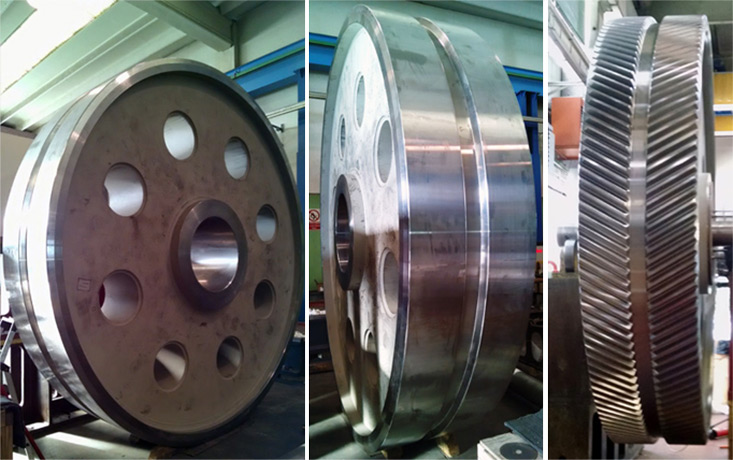

Turned, bored, milled and assembly performed with mechanical welding. Grinding of double helical teeth performed.External ring and internal hub material: Forged steel.
Internal structure material: Laser cut steel sheet.
Dimensions: Height 4', Dia. 12'.
For a customer in Great Britain.
Gear 6

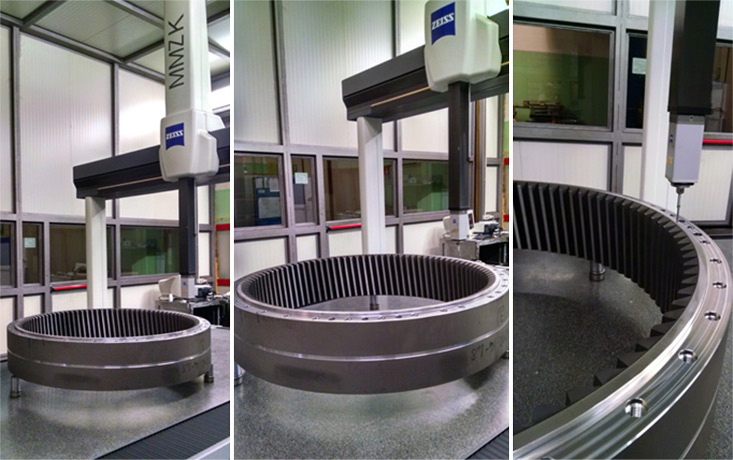

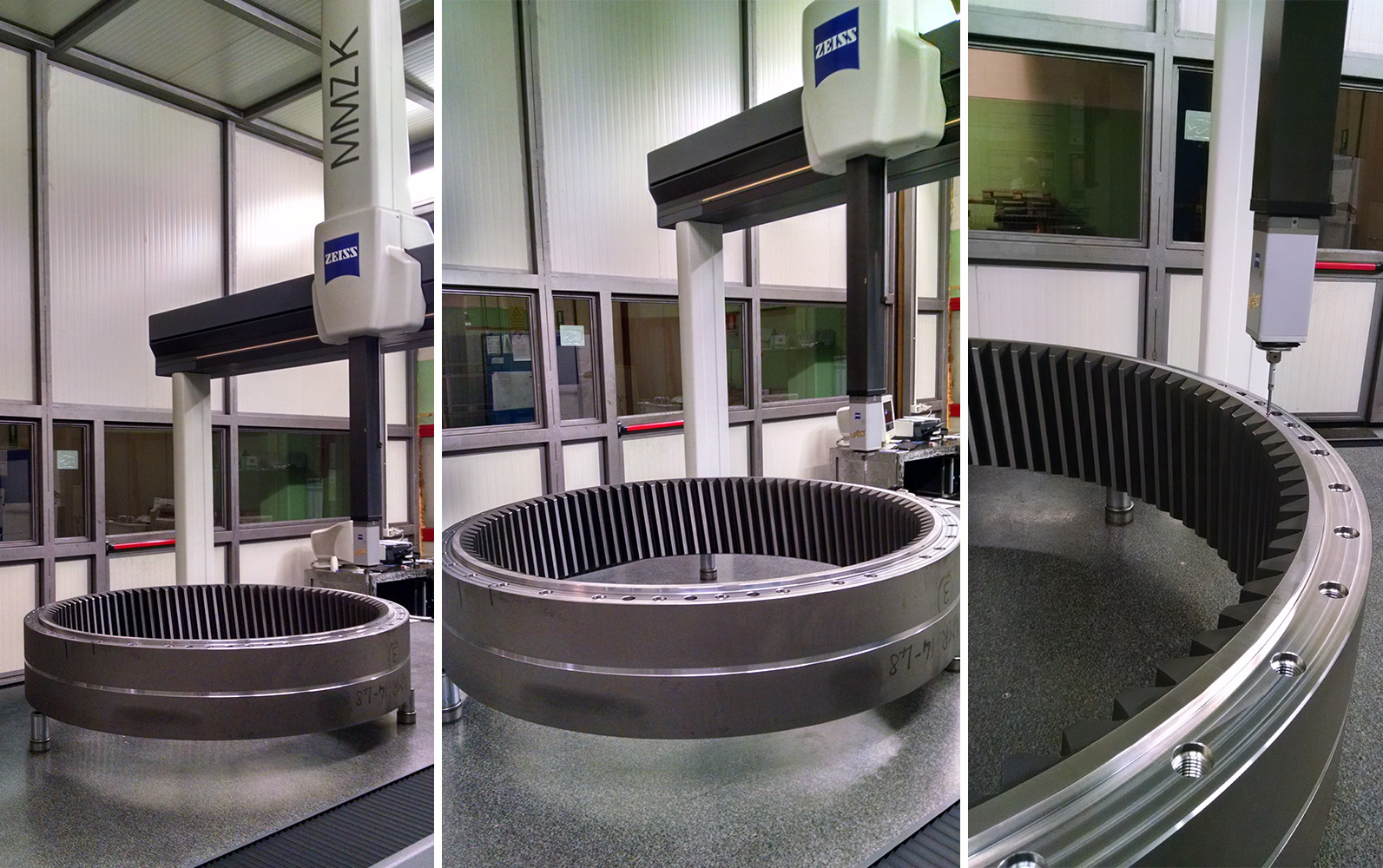

Turned, bored, milled and ground helicoidal internal teeth. Tested with Zeiss MMZK 3-dimensional precision machine.Ring material: Heat processed forged steel with quenched cement processing.
Dimensions: Height 1 ½', Dia. 6'.
For a customer in Great Britain.
