Machine Equipment
The Unigen Steel Engineering headquarters is around 54,000 square foot spread over three areas served by 4 bridge cranes weighing over 10 tons, one is 32 tons and one is 50 tons. Our machine diversity allows us to work at the forefront of the national and international elite, serving important companies within the steel working industry. Our Turning, Milling, Drilling, Boring and Comprehensive Machining capabilities has made it possible to earn the trust of industries of prime importance.
Our large numerically controlled machines can perform medium and large machining, up to 100,000 lbs. and 33 feet in length. Specialized and technical operators accurately follow every step of the machining cycle of every workpiece, which is then quality checked with a ZEISS coordinate measuring machine.
Turning
- GIANA CNC Turning Center with motorized milling and drilling system, Max boring length 4000mm, Max turning diameter 1700mm, Max turning length 7000mm, Siemens 840D control system;
- GMG CNC Turning Center, Max turning diameter 1300mm, Max turning length 5000mm;
- GMG CNC Turning Center with motorized milling and drilling system, Max turning diameter 420mm, Max turning length 3000mm, Siemens 840D control system;
- GMG CNC Turning Center with motorized milling and drilling system, Max turning diameter 500mm, Max turning length 3000mm, Siemens 840D control system;
- GIANA Manual Turning lathe w/DRO, Max turning diameter 1200mm, Max turning length 4000mm;
- GIANA Manual Turning lathe w/DRO, Max Turning diameter 1300, Max turning length 6000mm.

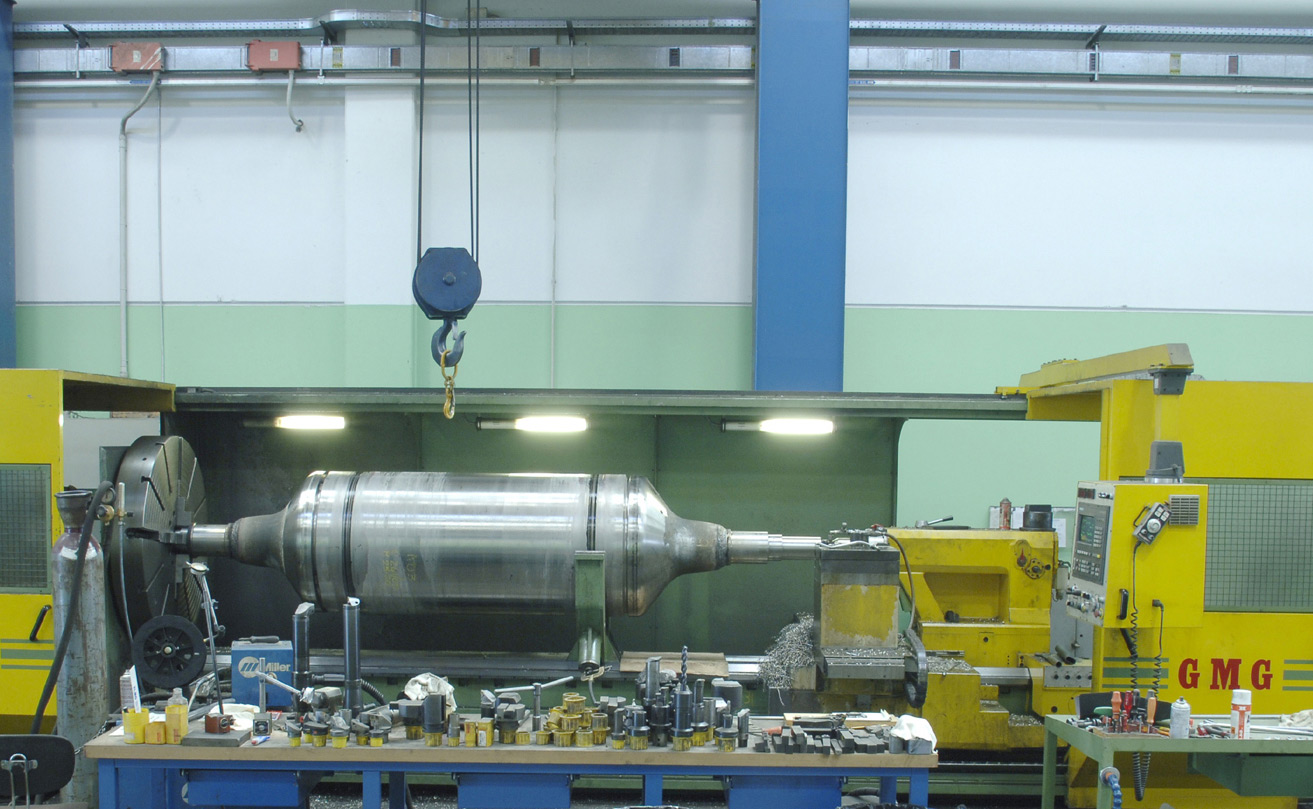

MGM turning Ø 1300 x 5000 mm

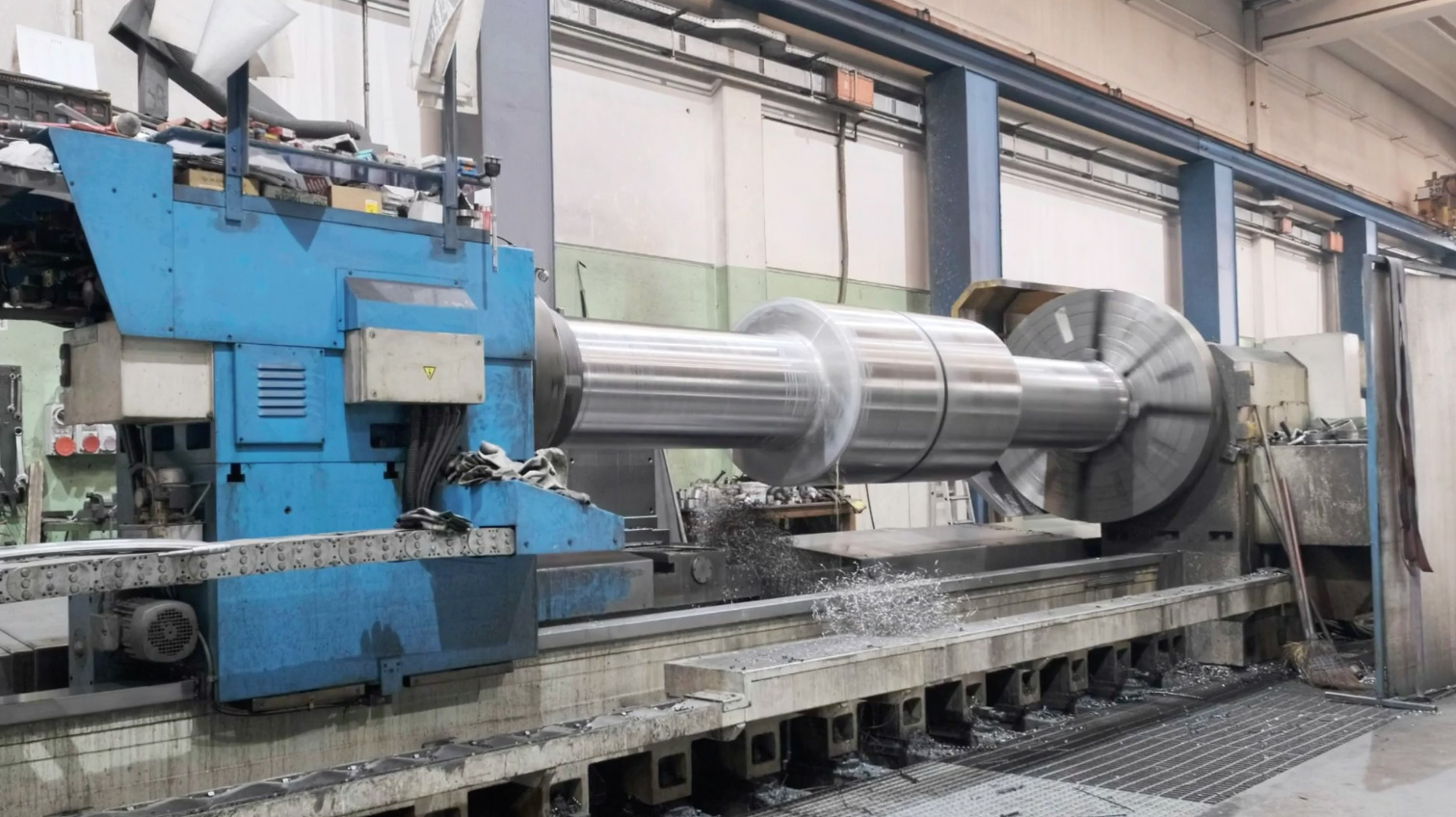

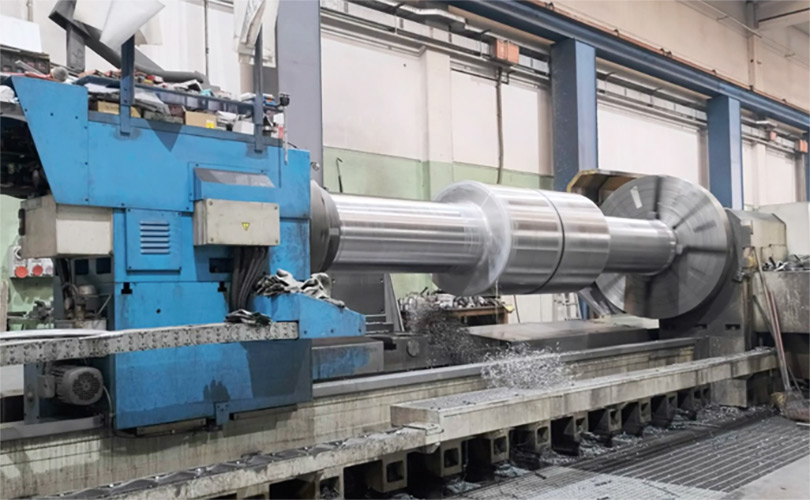

GIANA turning Ø 1700 x 7000 mm
Boring / Milling
- TOS Milling Machine with fixed bench, Travels X-8000mm, Y-2000mm, Z-1800mm, Heidenhain control, ISO 50 tool changer;
- KIA KBN-135, Rigid spindle (3-step gear head) diameter 135mm, Table travels X-3000mm, Y-2000mm, Z-1800mm, CNC Fanuc control, 60 position tool changer, Table dimensions 1800mm x 2000mm;
- MAZAK MTV 655/80N Vertical Machining Center with MAZATROL FUSION 640M, ISO 50 tool changer with 30 positions, Table travels X-2000mm, Y-650mm, Z-740mm;
- MAKE Horizontal Machining Center, Travels X-10,000mm, Y-3500mm, RAM dimensions 400mm x 450mm travel 1000, Spindle diameter 160mm travel 800mm, Rotating Table dimension 2500mm x 3000mm travel 1500mm, 44 ton capacity, Rapid 40 position automatic tool changer and 30 position automatic horizontal tool changer, Spindle power 54HP, High pressure refrigerated coolant system;
- AFD 105 Horizontal Machining Center with rigid spindle travels X-2000mm, Y-1600mm;
- TIGER Manual Milling Machine w/DRO, travels 1000mm x 400mm.

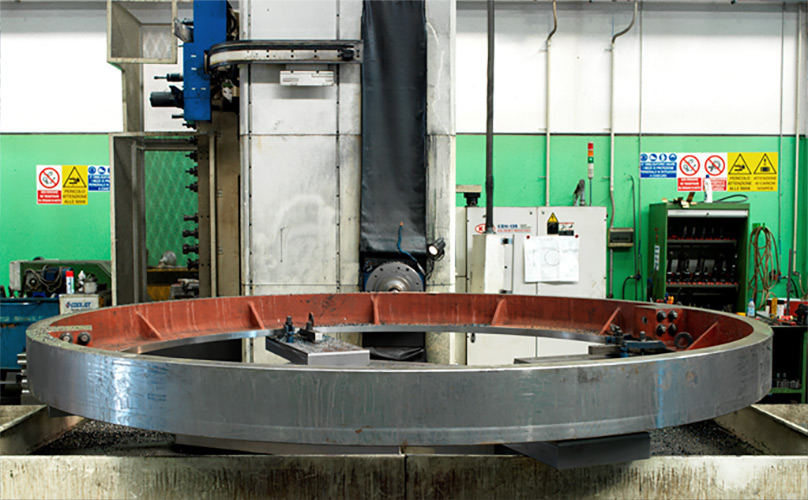

Milling machine X 3000 Y 2000 Z 1800

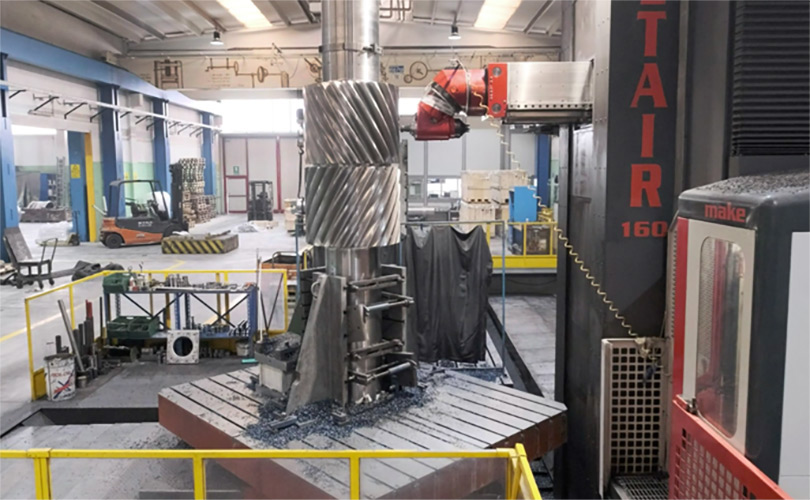

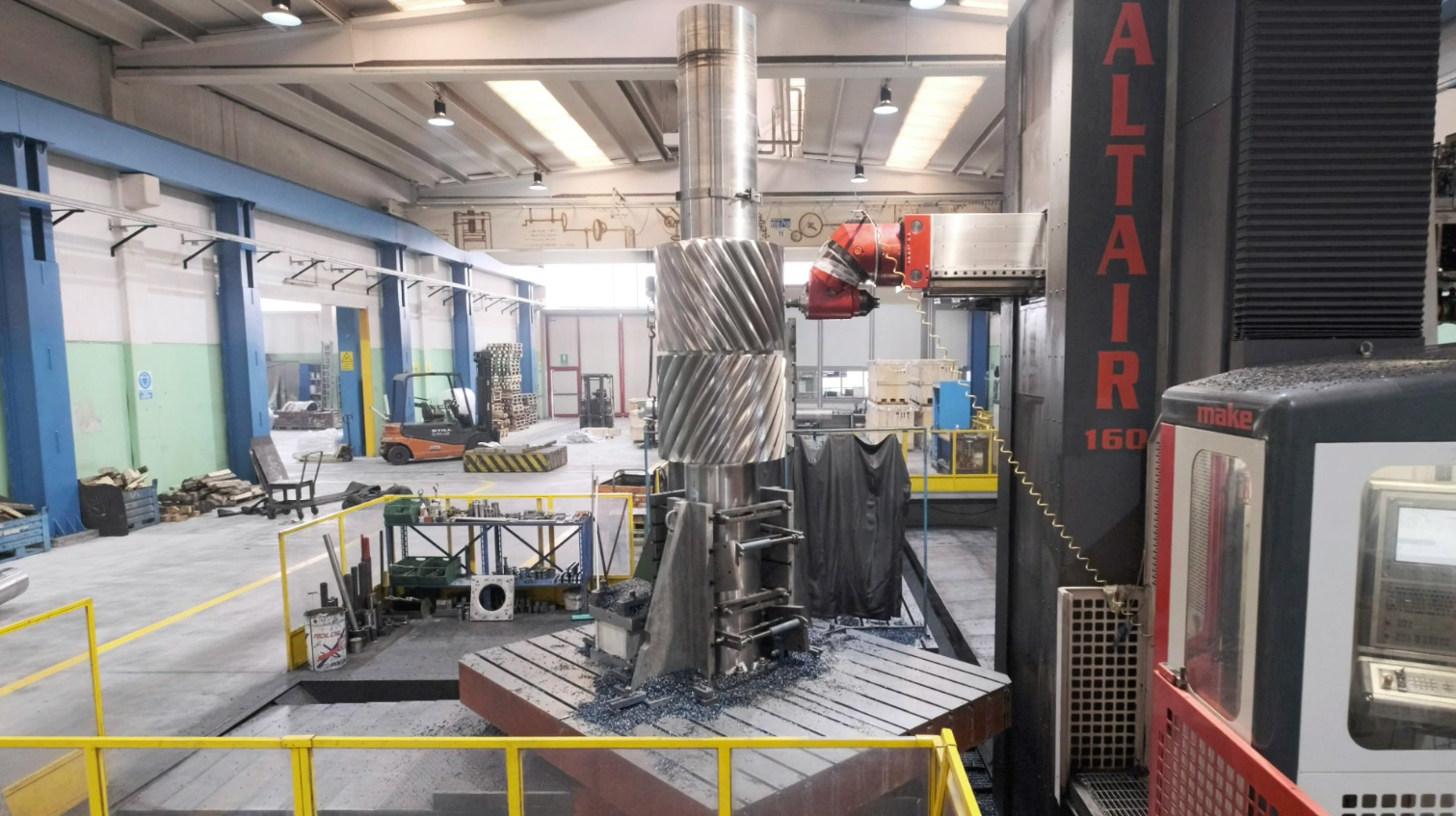

Milling machine MAKE X 10000 Y 3500
Mechanical carpentry
- Wire and electrode welding, Mag and TIG;
- Band saw cutters;
- Various equipment for machine assembly;
- Carpentry construction department for medium and large size workpieces.
Other equipment
- ZEISS Coordinate Measuring Machine, Model MMZK;
- CEMB Balancing Machine, Model ZB 3000/TCGV, 1400mm x 8000mm;
- Painting workstation with wall mounted aspirator;
- We perform finished processes such as: chrome plating, toothing, grinding and heat treatments, in partnership with specialized companies in close collaboration with our company for many years.

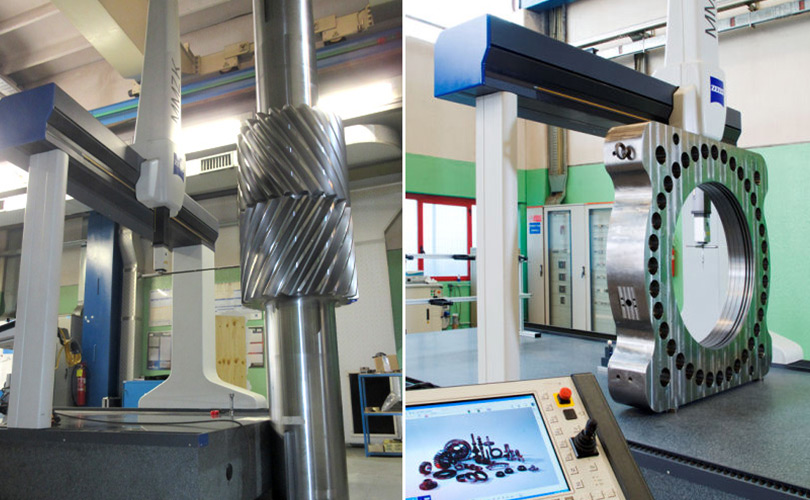

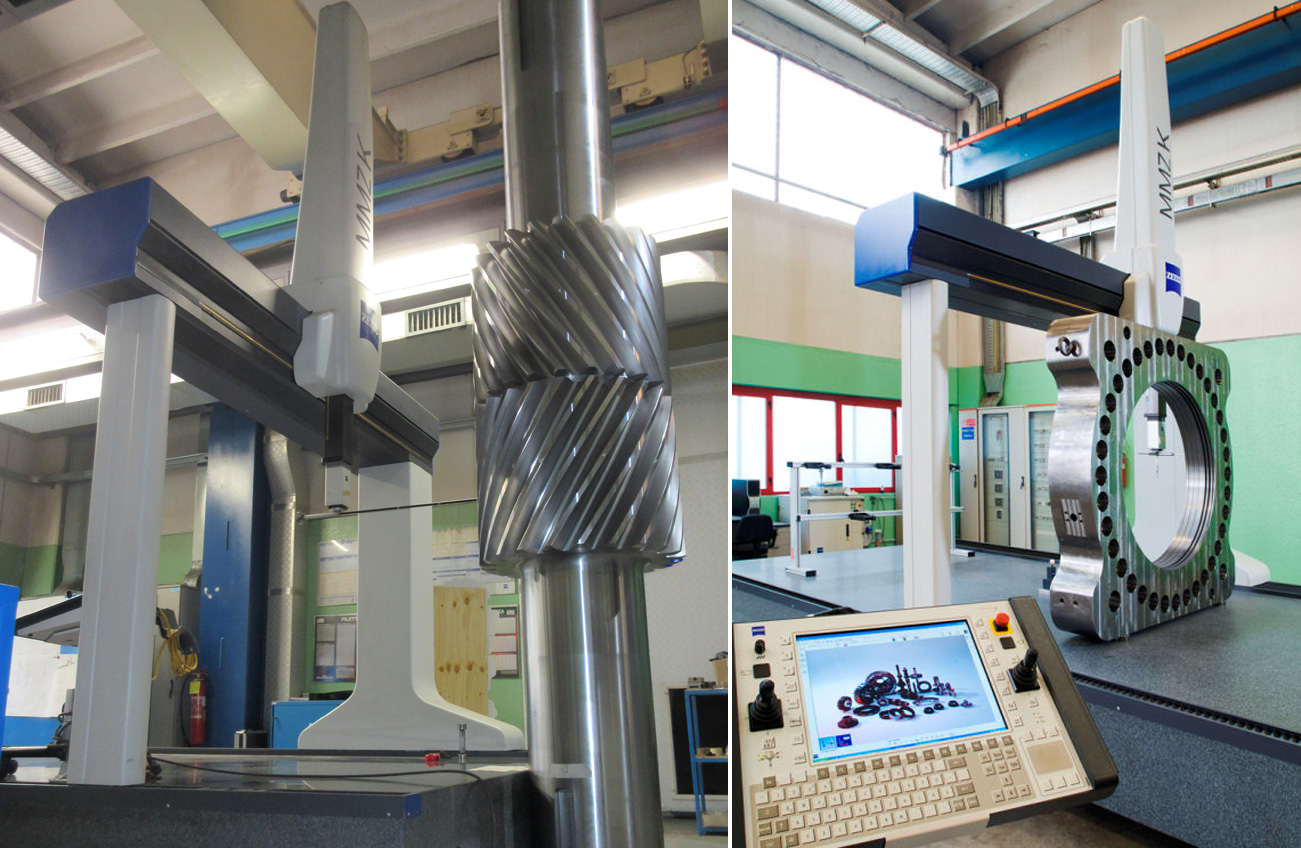

ZEISS three-dimensional testing machine

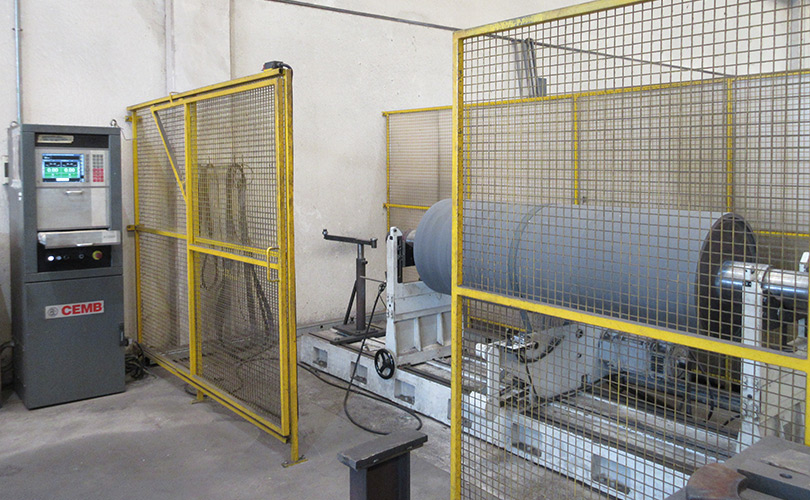

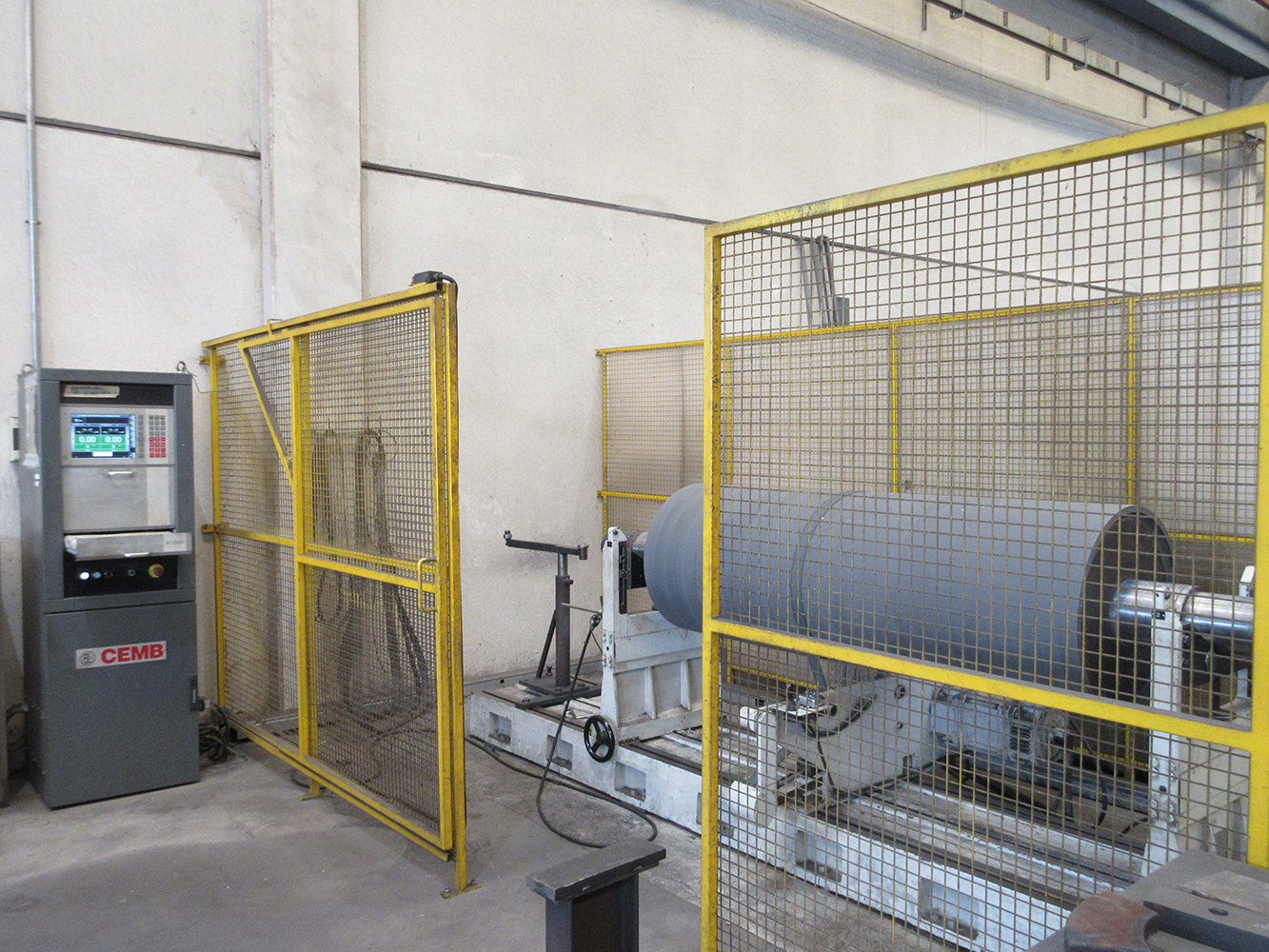

CEMB balancing machine
